Interior Glass Railing Toronto

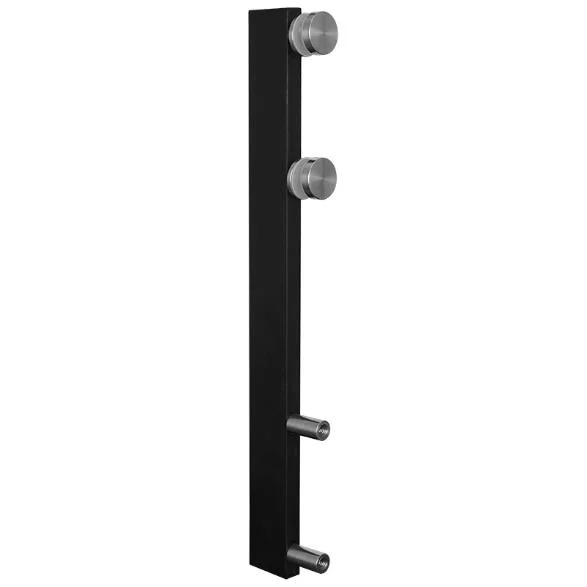

MINI POSTS

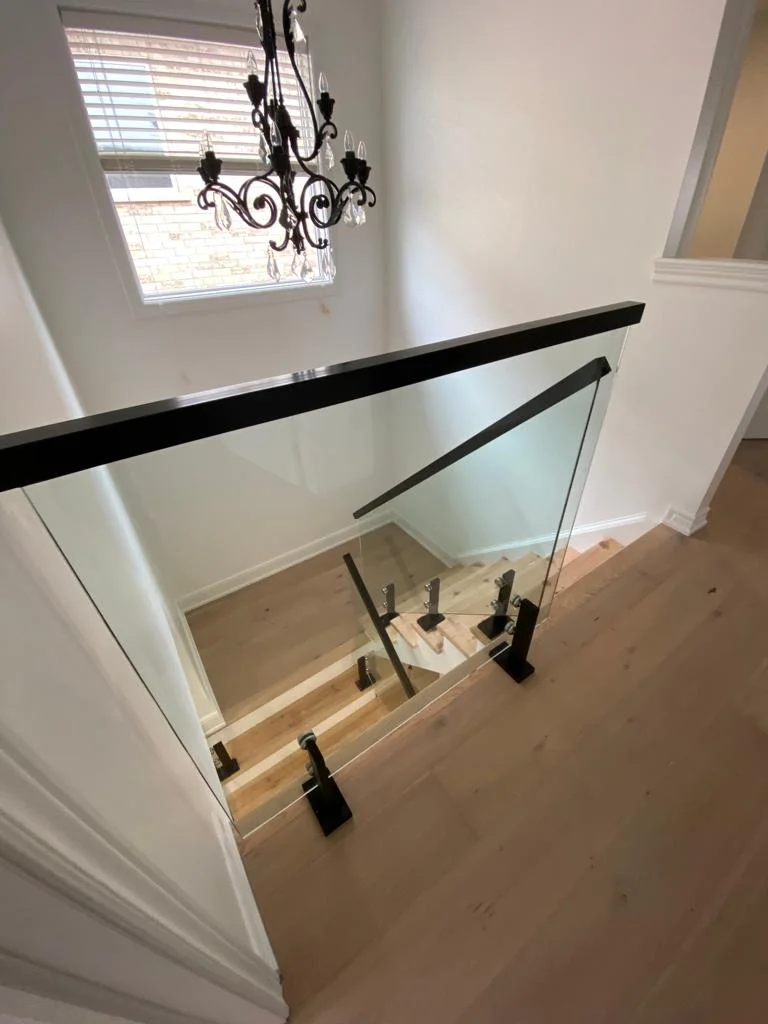

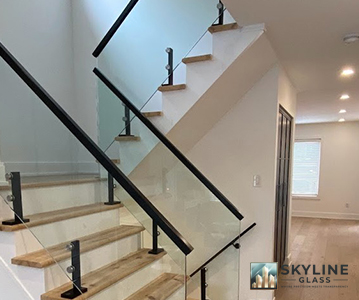

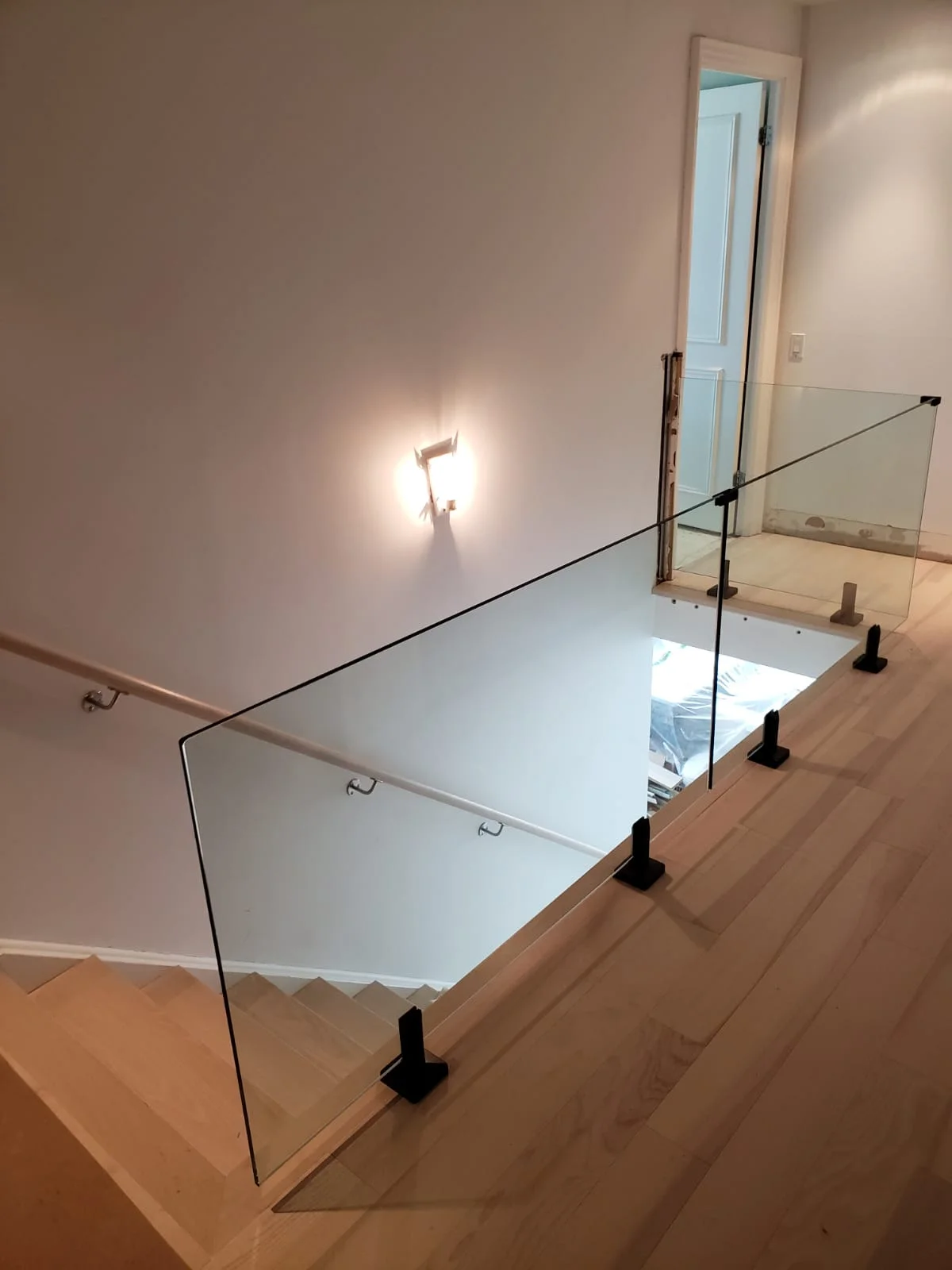

Mini-posts offer both side and surface-mounted options. Glass floats above the surface supported by standoffs which are mounted to an aluminum or a stainless steel mini post. Can be installed on any surface, stairs, landing, or balcony.

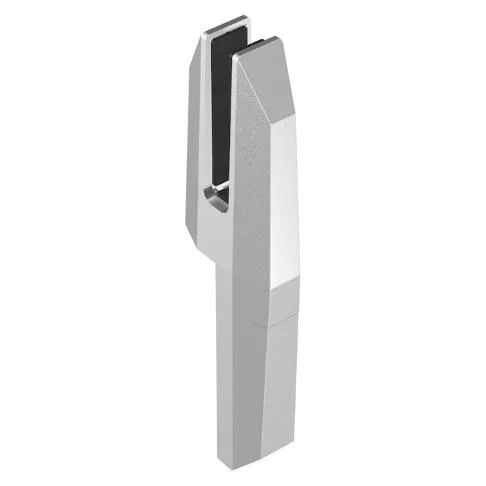

BASESHOES

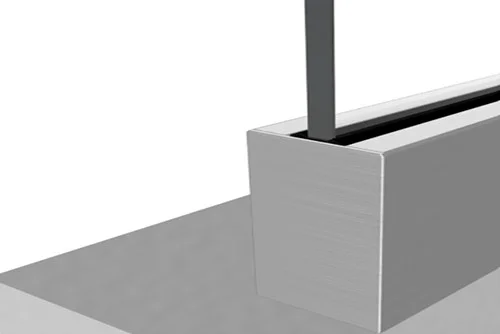

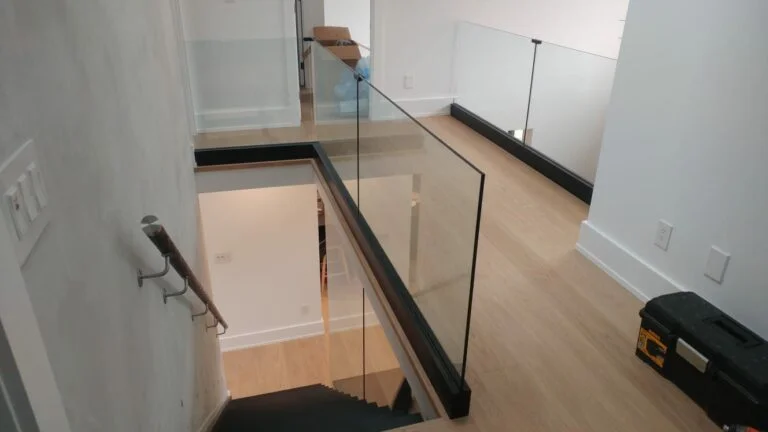

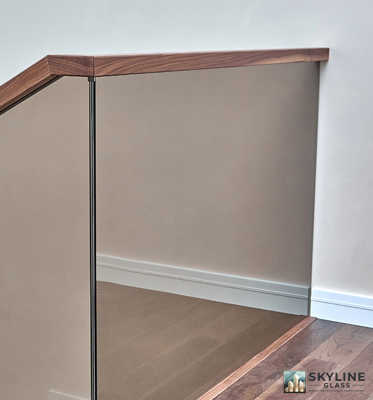

Our beautiful base shoe system design features ½” glass with a bottom supporting 5” tall shoe channel that can be surface or side mounted to further conceal the hardware. Requires no vertical support. Excellent choice for landings or stringers with a flat surface.

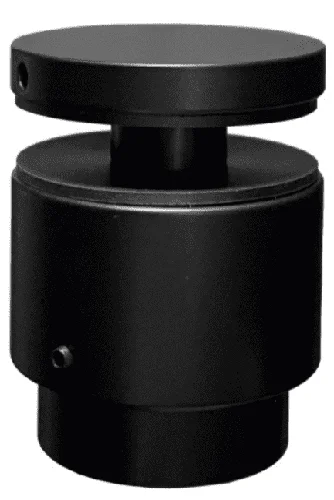

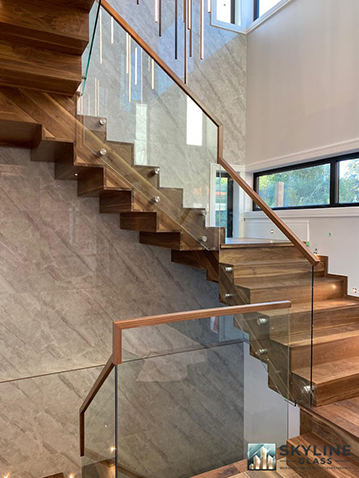

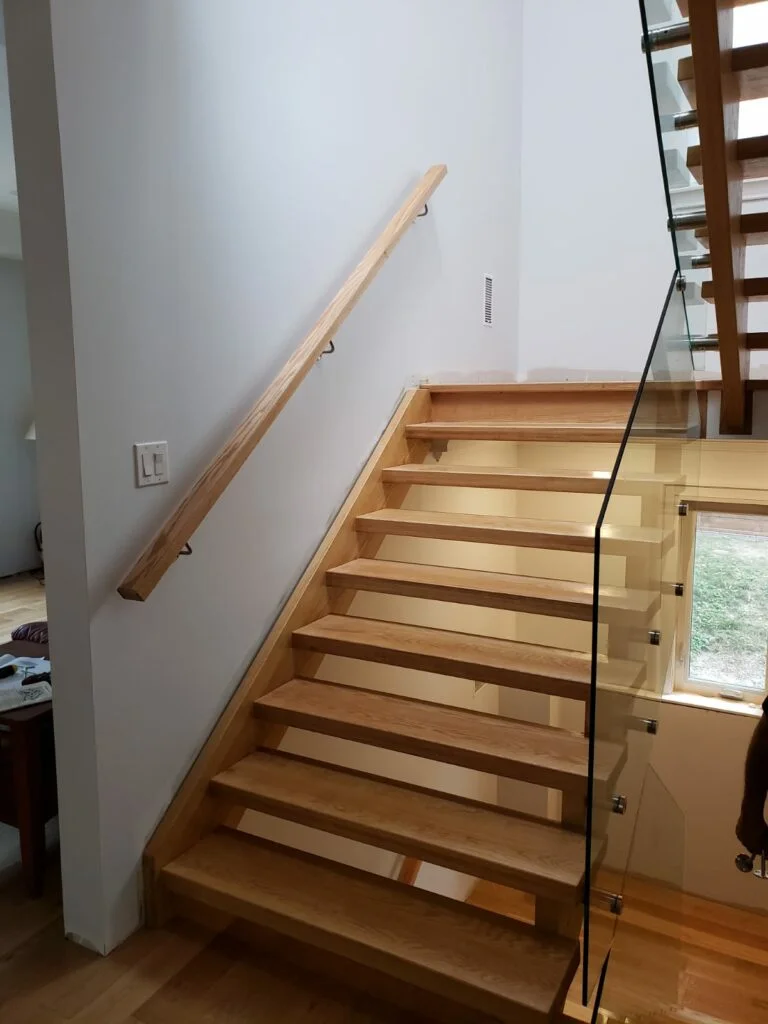

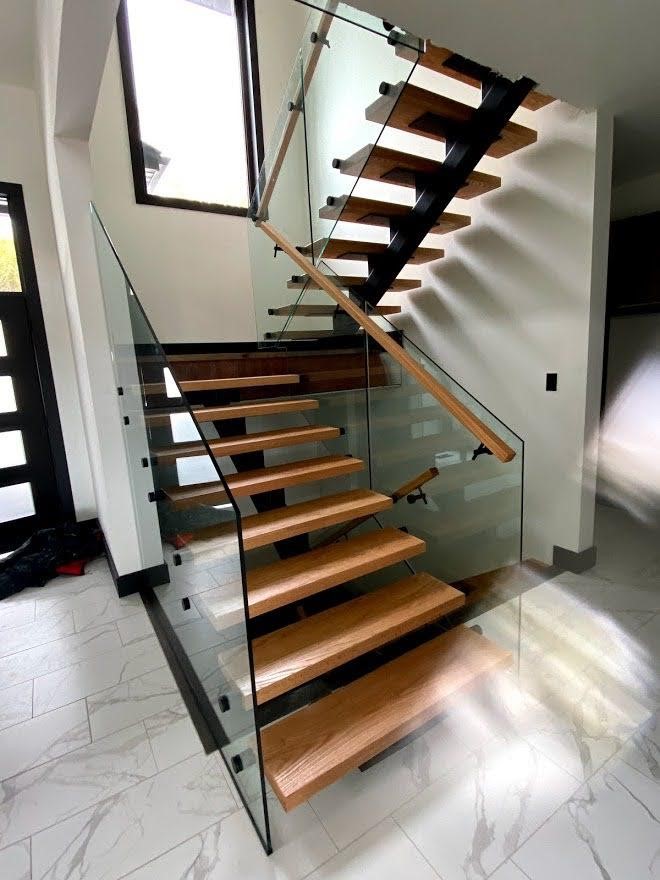

STANDOFFS

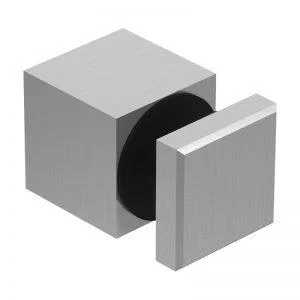

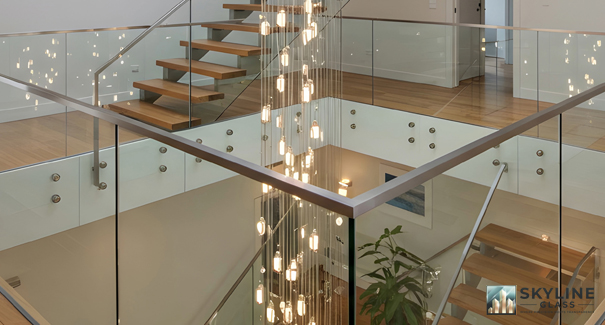

Extremely popular option- “standoffs” which offer a side mounted installation option popular on stairs with a narrow stringer. Glass is installed on the side of the stringer or landing, increasing the walkway width. Square and round shapes available in various sizes. Uses 12mm (1/2”) tempered glass. No vertical support required. Optional glass clips or a cap rail can be added.

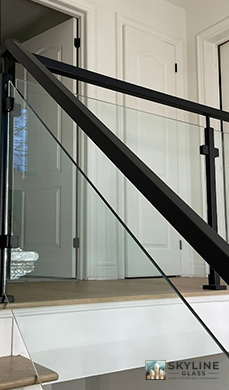

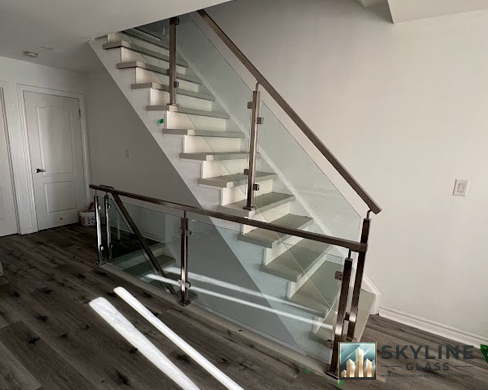

FRAMELESS STAINLESS STEEL POSTS

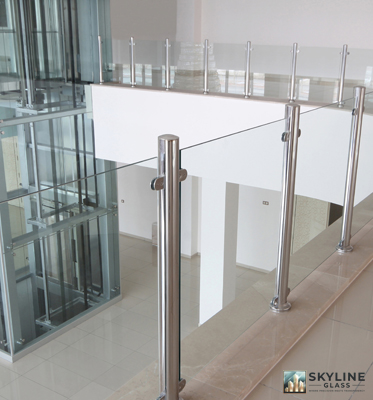

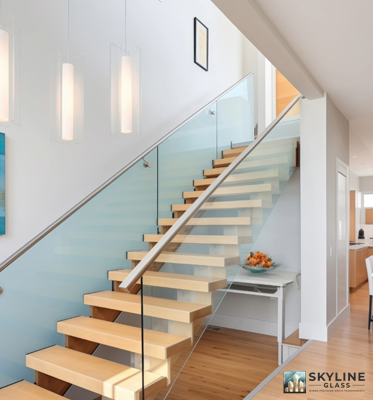

The system can be adapted to stairs as well as landings and balconies. Comes standard with a post-mounted handrail that can be installed on stairs as well as horizontal applications. Square and round options are available for the post profile as well as the handrail. Uses 10mm (3/8”) or 12mm (1/2”) tempered glass. Glass panels remain frameless as they are secured using clips installed on adjacent posts, leaving out any supporting framing.

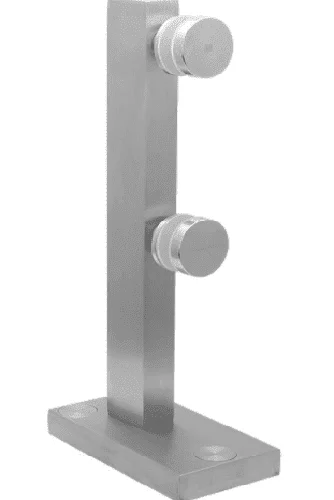

MINI POSTS

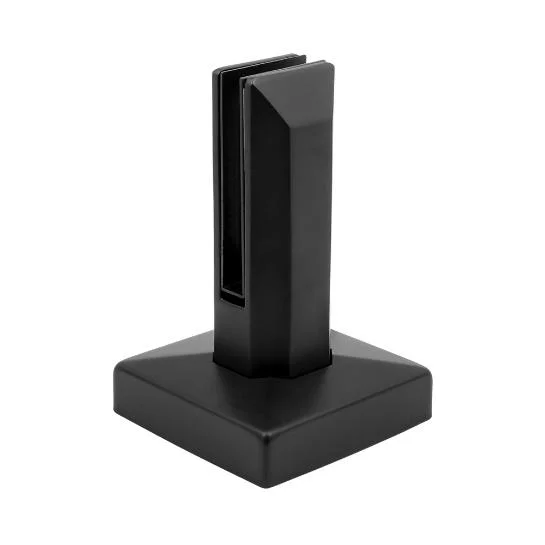

Mini-posts offer both side and surface mounted options. Glass floats above the deck surface supported by standoffs which are mounted to an aluminum or a stainless steel mini post. Can be adapted to almost any wood or concrete surface on balconies, decks, porches, and stairs.

Mounting Options:

• Surface Mounted

• Side mounted

Glass Thickness:

• 1/2″ (12mm)

Hardware Colours To Choose From:

• Satin Anodized Aluminum

• Black Aluminum

• Stainless steel

• Custom powder coated

Glass Types

• Standard clear

• Starphire Ultra- clear

• Frosted

• Printed

• Bronze-Tinted

• Grey-Tinted

BASE SHOE

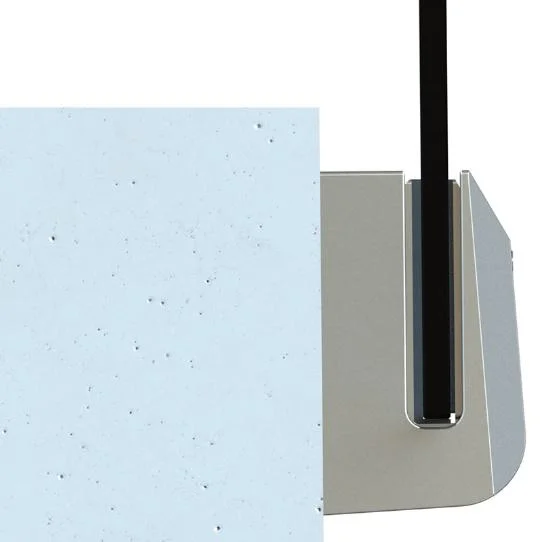

Our beautiful base shoe system design features ½” glass with a bottom supporting 5” tall shoe channel that can be surface or side mounted to further conceal the hardware. Requires no vertical support. Excellent choice for decks, porches, and balconies. Can be installed on stairs but requires a 3” wide stringer surface to mount to.

Mounting Options:

• Surface Mounted

• Side mounted

Glass Types

• Standard clear

• Starphire Ultra- clear

• Frosted

• Printed

• Bronze-Tinted

• Grey-Tinted

Glass Thickness:

• 1/2″ (12mm)

Hardware Colours To Choose From:

• Satin Anodized Aluminum

• Black Aluminum

• Stainless steel

• Custom powder coated

STANDOFFS

Standoffs offer a side mounted installation option popular on balconies and decks. Glass sits proud of the deck surface with hardware hidden below the view. When viewed from the inside, this type of installation offers the least obstructed views out of all frameless systems. Square and round shapes available in various sizes. Uses 12mm (1/2”) tempered glass. No vertical support required. Optional glass clips or a cap rail can be added.

Mounting Options:

• Surface Mounted

Glass Thickness:

• 1/2″ (12mm)

Hardware Colours To Choose From:

• Brushed stainless steel
• Matte Black
• Custom powder coated

Glass Types

• Standard clear

• Starphire Ultra- clear

• Frosted

• Printed

• Bronze-Tinted

• Grey-Tinted

FRAMELESS STAINLESS STEEL POSTS

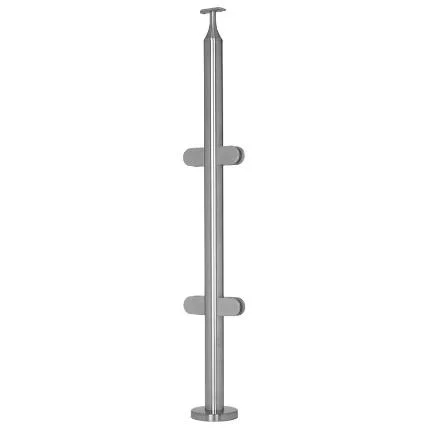

Our most popular system type – Frameless Stainless Steel Post Glass Railings. The system can be adapted to almost any setting including exterior decks, stairs, porches and balconies. Available as a top or side mounted option. Comes standard with a post-mounted handrail that can be installed on stair as well as horizontal applications. Square and round options available for the post profile as well as the handrail. Uses 10mm (3/8”) or 12mm (1/2”) tempered glass. Glass panels remain frameless as they are secured using clips installed on adjacent posts, leaving out any supporting framing. To learn about the difference between aluminum and stainless-steel post systems, see the key features outlined in an article below.

Mounting Options:

• Surface Mounted

• Side mounted

Glass Thickness:

• 3/8” (10mm)

• 1/2″ (12mm)

Hardware Colours To Choose From:

• Brushed stainless steel

• Matte Black

• Custom powder coated

Glass Types

• Standard clear

• Starphire Ultra- clear

• Frosted

• Printed

• Bronze-Tinted

• Grey-Tinted

PREPARING THE AREA

Regardless of which system you have chosen, it is important that the area is prepared properly to accept a stable installation of exterior railings. All our systems have the same requirement for a proper stable base, they are described below:

Concrete

A minimum available thickness 6” of concrete to be available for rod mounting and fastening. Side and surface installation systems requirements are the same. Concrete can be covered with stone or tile, as long as adequate thickness of concrete is available below the surface material. This applies to pool fencing, porches, balconies, and all other areas where railings are to be installed.

Wood

If mounting to a wooden surface it is imperative that below the surface, we are able to fasten to a reinforced wooden structure of a minimum of 6” deep. It is also equally as important that the wooden structure is securely fastened to the rest of the deck/balcony/house etc. to ensure adequate stability of the railings. Special consideration should be given to areas that are prone to high winds, such as lake houses and exposed elevated decks. All our systems are rated and certified to withstand significant forced exerted on the guards by leaning or wind gust forced. It is the homeowner’s or builder’s responsibility to ensure the material supporting the hardware anchors is able to withstand forces transferred to it by the guards. A typical requirement is a triple stacked 2×8 or larger material below the mounting surface which is secured to the rest of the structure.

Stone And Composites

The surface of the installation should be as smooth and level as possible. If not using wood or concrete as the mounting surface, ensure that below the surface adequate material can be found to be used for fastening. There should be either the wood or the concrete material described above.
